Want to create Title Blocks in TurboCAD? Print

Created by: Tayyaba Ashraf

Modified on: Fri, 2 Feb, 2018 at 4:06 AM

You can create the title block by using the table tool, after creating the required table convert it to block.

1. Here is the link to the details on Inserting Table
https://turbocaddoc.atlassian.net/wiki/spaces/T2UG/pages/100925790/Insert+TableCreating

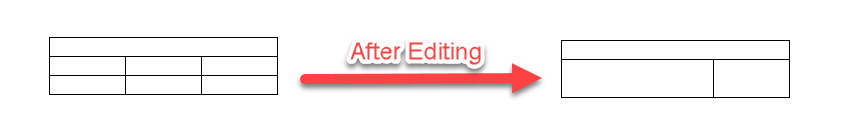

2. You can also change the row and columns of the table and can edit the text according to your need.

Find the links below for the details

Changing Rows and Columns, Merging Cells

Modify Table

3. After the modification, convert the table to block, and your title block is ready.

Here is the link to the details on Block
https://turbocaddoc.atlassian.net/wiki/spaces/T2UG/pages/101646362/Creating+a+Block

For reference, you can open the template file (A3) in TurboCAD, title block will be available to you in the paper space.

Tayyaba is the author of this solution article.
